those weird fasteners

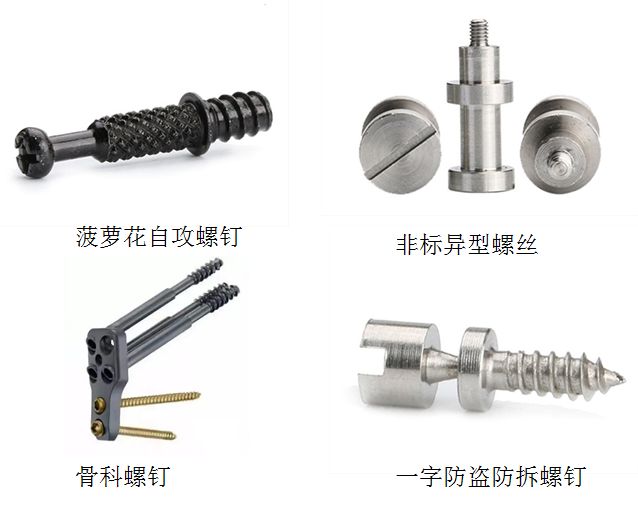

Are these screws self-tapping?Lag screws?Or other screws?When friends encounter these non-standard fasteners, they are often undecided and do not know how to declare correctly.Today, the editor will sort out the declaration of steel fasteners.

一

Classification of steel fasteners

First, it is judged whether fasteners are classified in heading 73.18.Some threaded products do not serve to fasten two or more parts (components) and are not classified in heading 73.18, such as screw plugs (heading 83.09), worms transmitting power (heading 84.83).Also according to the 2022 edition of the Harmonized System, implants such as screws, bolts, etc., intended for medical, surgical, dental or veterinary use are not 'universal parts' and should be classified in heading 90.21.Other fasteners of iron and steel belonging to 'general purpose parts' are classified in heading 73.18.

The second step is to determine the corresponding first-level sub-item according to whether it has a thread or not.Threaded articles are included in subheading 7318.1 and unthreaded articles are included in subheading 7318.2.

Unthreaded products include washers, rivets, pins, etc.

The third step is to determine the corresponding secondary subheadings according to the structure and use.For threaded products, it is necessary to distinguish whether it is wood screws, hook head and ring head screws, self-tapping screws or other screws, bolts, nuts, etc.; for non-threaded products, it is necessary to distinguish between washers, rivets or pins, etc.

E.g:

Subheading 7318.13 Hook-head screws and ring-head screws, which have a hook-shaped or annular tail and a conical threaded portion with a pointed point, often used for hanging or fixing other objects.

Subheading 7318.14 Self-tapping screws, similar to wood screws, having a slotted head, a cutting thread and a pointed or tapered end.Its use is generally screwed into thin plates such as plastic, slate, and metal.

Nuts of subheading 7318.16 are metal parts used to secure a corresponding bolt in place, usually threaded throughout, but sometimes with a blind hole at one end.

二

Specification declaration for fasteners made of steel

According to the 2022 edition of the 'Import and Export Commodity Standard Declaration Catalog', the standard declaration elements of item 73.18 fasteners mainly include:

1. Product name

2. Material (requires declaration of specific materials, such as iron, stainless steel, etc., cannot be simply declared as 'steel')

3. Types (such as lag screws, self-tapping screws, nuts, washers, etc.)

4. Tensile strength (referring to the maximum bearing capacity of the metal under static tensile conditions, the unit is Mpa MPa)

5. Brand (referring to the brand logo added by the manufacturer or distributor on the product, fill in the Chinese or foreign brand name according to the actual inspection status of the product)

6. Model (refers to the code set according to factors such as performance, use, specification or size)

7. Rod diameter (for screws and bolts under subheadings 7318.11 to 7318.15, the rod diameter of the commodity should be filled in, usually in 'mm')

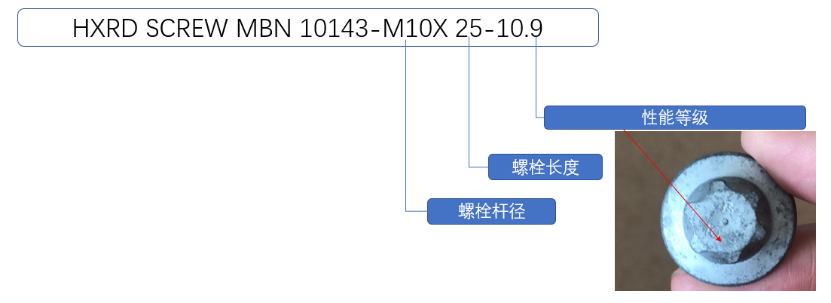

Most of the above information can be obtained from the label of the product, for example:

Among them, the common mechanical performance grades are 8.8, 9.8, 10.9 and 12.9.

The meaning of the mark code:

The first number (before '·') represents 1/100 of the nominal tensile strength;

The second number (after '·') represents the ratio of the nominal yield point to the nominal tensile strength, that is, the yield-strength ratio.

The bolt in the picture above has a mechanical property class of 10.9.

It represents the nominal tensile strength of the bolt is 1000MPa, the yield ratio is 0.9, and the yield strength of the bolt is 900MPa.

三

Origin declaration requirements for carbon steel fasteners

According to the 'Announcement of the Ministry of Commerce on the Ruling on the Expiry Review of Anti-dumping Measures for Imported Carbon Steel Fasteners Originating in the European Union and the United Kingdom' (Ministry of Commerce Announcement No. 17, 2022), from June 29, 2022, the Anti-dumping duties will continue to be levied on imports of carbon steel fasteners from the EU and the UK for a period of five years.

Carbon steel fasteners subject to anti-dumping measures include wood screws, self-tapping screws, screws and bolts (whether or not with nuts or washers, but excluding screws for securing rails and screws and bolts with a rod diameter not exceeding 6 mm) and gaskets.Excludes stainless steel and fasteners used for civil aircraft maintenance and repair.

These products are classified as 7318.1200, 7318.1400, 7318.1510, 7318.1590, 7318.2100, 7318.2200, 9021.1000, 9021.2900.

When declaring the import of fasteners within the scope of the above-mentioned anti-dumping duties:

1. The country of origin should be declared truthfully and relevant evidence documents of the country of origin should be submitted. If it cannot be submitted, an explanation should be made.

2. If the country of origin is the European Union and the United Kingdom, the original manufacturer's invoice must also be provided.

3. If the country of origin is the European Union and the United Kingdom, it is also necessary to fill in 'Original Chinese name of the manufacturer', 'Original manufacturer's English name', 'Anti-dumping rate', 'Anti-subsidy rate' in the specification and model column. And 'whether it meets the price commitment' and other necessary information for tax calculation.

四

Declaration example

example 1

Product name: Bolt

Product code: 73181510.01

Declaration elements: material: carbon steel | tensile strength: 950 MPa | brand: AMTOO brand | model: MBN 10143 M10 | rod diameter: 10MM | <other EU companies><0.26><><0>

Example 2

Product name: Bolt

Product code: 73181590.90

Declaration elements: Material: Stainless Steel | Tensile Strength: 686 MPa | Brand: No Chinese or Foreign Brand Name | Model: 81-A6616-2A | Rod Diameter: 10MM
